Plan 2403

Plan Features

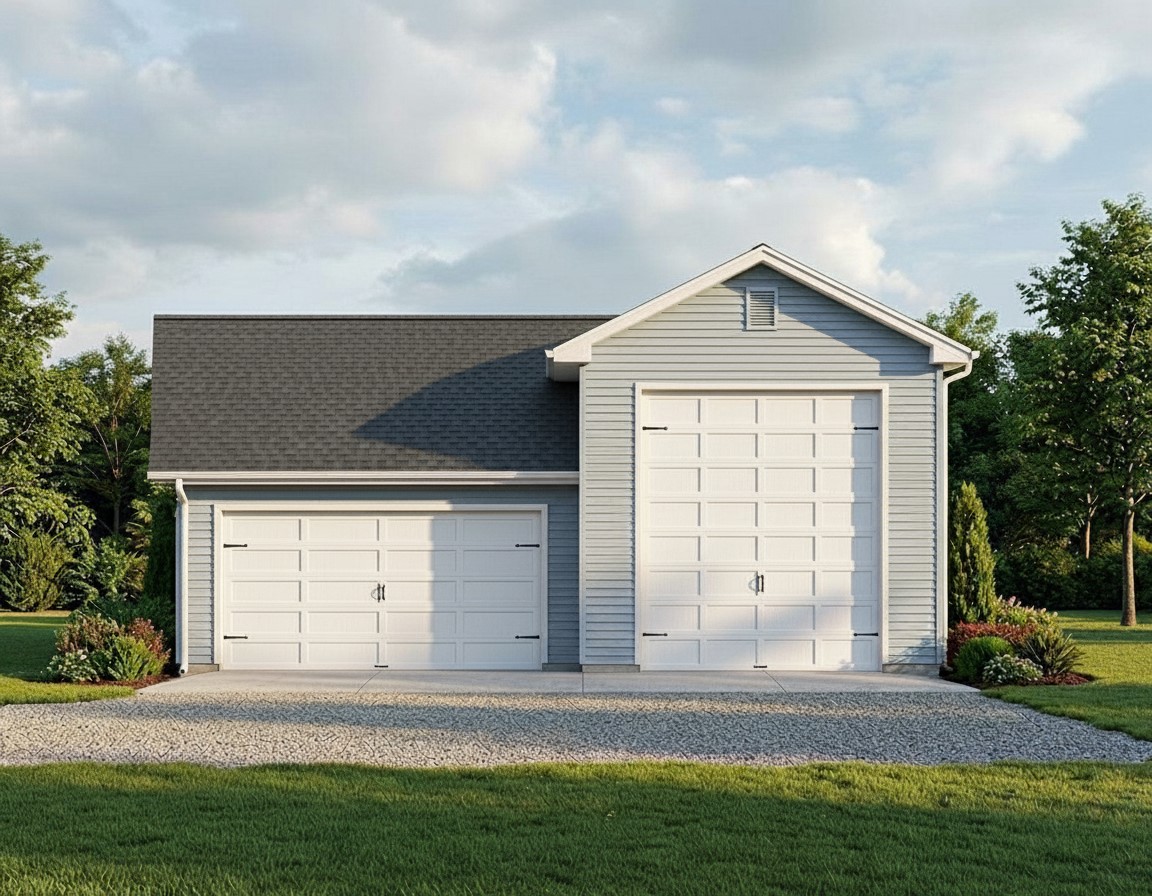

RV Garage Plans

Plan Details

Bays	3
Levels	2
Width	38'
Depth	34'
Height	21'
Exterior wall	2x4
Foundation	Footing and Foundation Wall
Roof framing	Roof Trusses
Roof pitch	6/12 Main Roof
Ceiling height	16-0 RV Side, 10-0 Garage Side
Garage Door Size	12' Wide X 14' Tall - RV Side
Garage Door Size	16' Wide x 8' Tall - Garage Side

The tall walls on the RV side of the building are framed with 2×6 studs. The walls on the garage side are framed with 2×4 walls. Select the 2×6 option if you want the entire garage to be framed with 2×6 studs.

Choose a Plan Package(Required)

PDF File - $365.00

RECOMMENDED
A PDF file is a complete set of construction drawings in an electronic format that allows you to print enough copies to build the house or garage once. This file will be emailed to you, usually within one business day, and eliminates all shipping expenses. This is extremely useful when time is of the essence and/or when shipping out of the country. Since this is an electronic transaction, there are no plans to get tied up in customs and be subjected to additional fees. When a PDF file is ordered, the designer will email their license agreement to you first. Once you reply to that email, the designer will email the PDF file.

This plan package grants you the right to build this structure one time. Multiple builds is not permissible and is a violation of copyright laws.

CAD File - $515.00

CAD (Computer-Aided Drafting) files are a complete set of plans in an electronic file format (a .DWG format) and can be opened in most professional design programs. CAD files can be used if you want to make substantial changes to the plans. You will need to hire a professional to make the changes. CAD files include a copyright release allowing you to make legal changes to the copyrighted plans. Since the CAD files will be emailed to you, the designer will first email a license agreement to you. Once you reply to their agreement, the CAD file will then be emailed to you.

This plan package grants you the right to build this structure one time. Multiple builds is not permissible and is a violation of copyright laws.

Plan Options

Material List - $50.00

A material list is a detailed list of materials needed to construct your home or garage. Typically material lists call out the quantity, sizes and descriptions of the major building materials needed to construct your house. Material lists help you get more accurate bids from contractors saving time and reducing costs by only paying for the materials you need for construction. Appliances, HVAC, foundation materials, rough plumbing and other various interior finish materials may not be included.

Right Reading Reverse - $50.00

A right reading reverse house plan is also printed in reverse layout from the original drawings. These plans are helpful when your building site would better accommodate your home plan if all rooms were on the opposite side than what is shown on the original plan. With right-reading reverse house plans, the floor plan is flipped left to right and the text is readable.
